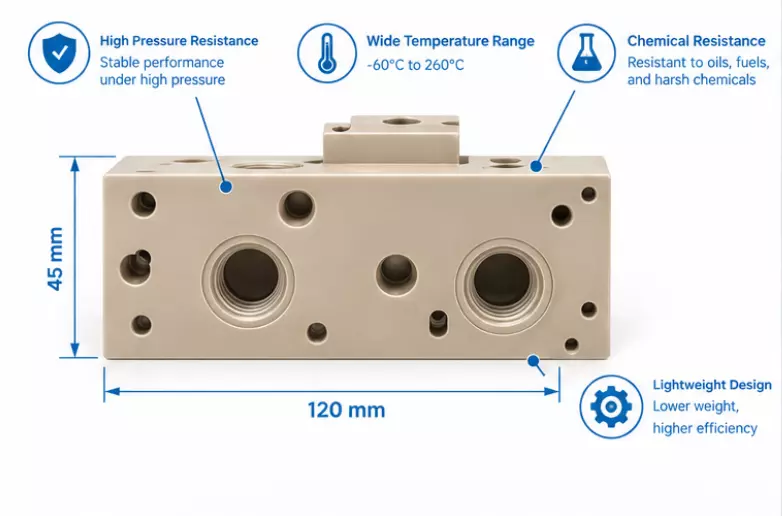

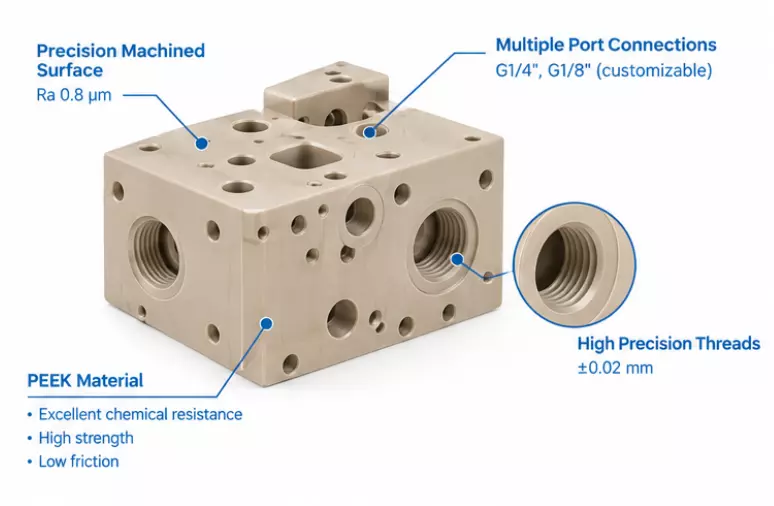

Custom PEEK Hydraulic Manifold Block CNC Machined High Performance Engineering Plastic Valve Block

This custom PEEK hydraulic manifold block is fabricated from premium PEEK polyetheretherketone, a high-performance engineering plastic renowned for excellent thermal resistance, chemical stability and mechanical strength. Our precision CNC machining accurately creates complex internal flow channels and threaded holes, maintaining strict tolerances to prevent fluid leakage in hydraulic systems.

Apart from PEEK, we can machine a wide selection of materials including PEI, PPS, aluminum, stainless steel and titanium alloy to meet diverse requirements for semiconductor, medical and fluid control applications.

Core Advantages of PEEK Hydraulic Manifold Block

1. Superior chemical resistance, resistant to most hydraulic oils and corrosive media
2. High temperature resistance, stable performance under continuous high temperature working conditions
3. Low creep property, keeps good sealing performance under long-term pressure
4. Light weight compared with metal valve blocks, reduces overall equipment load
5. Non-corrosive, ideal for clean and special fluid transmission environments

FAQ

1. Can you produce PEEK hydraulic manifold blocks according to my CAD drawings? Yes, we accept custom CNC machining based on your 2D drawings or 3D CAD files and provide DFM review before production.
2. What other materials can you process besides PEEK? We machine PEI, PPS, aluminum alloy, stainless steel, titanium alloy and other engineering plastics and metals for precision parts.
3. What is the MOQ for custom PEEK manifold blocks? We support prototype small batch and mass production, MOQ can be negotiated.
4. What tolerance can you achieve on the threaded holes and flow channels? We can reach ±0.008mm for critical features, tighter tolerance is available upon request.
5. What is the prototype lead time for this PEEK valve block? Typical prototype lead time is 8-14 working days, subject to part complexity.
