Custom 5‑Axis CNC Machined Automotive Transmission Housing | Precision Auto Powertrain Structural Casing Component
PRODUCTS

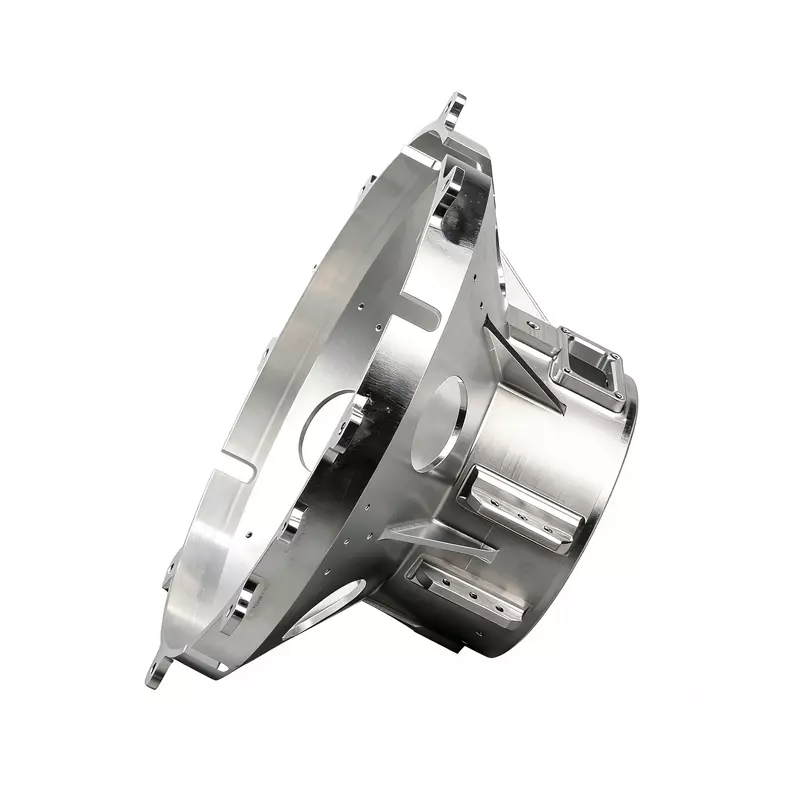

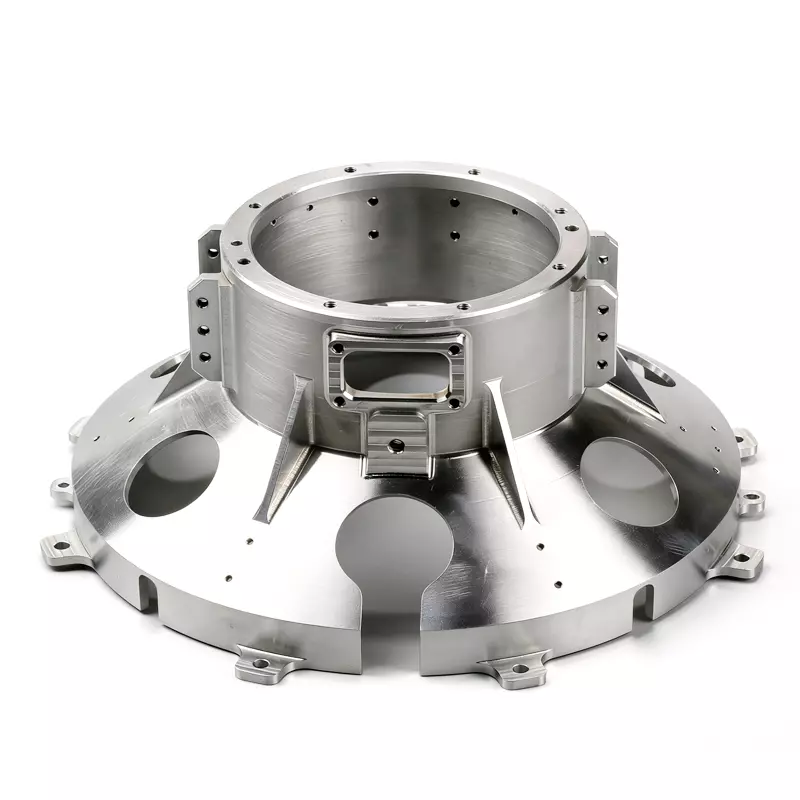

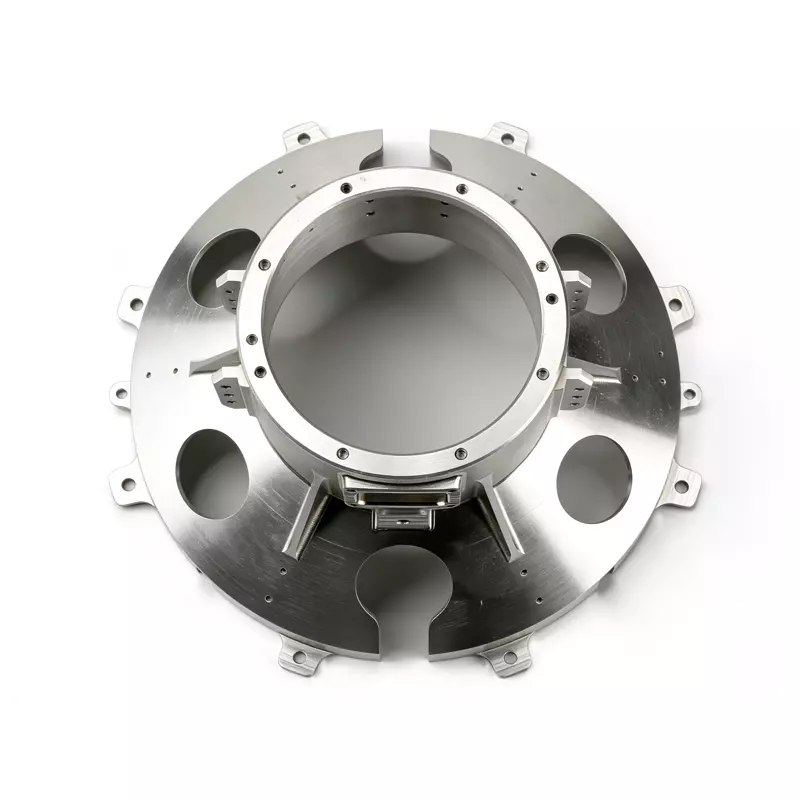

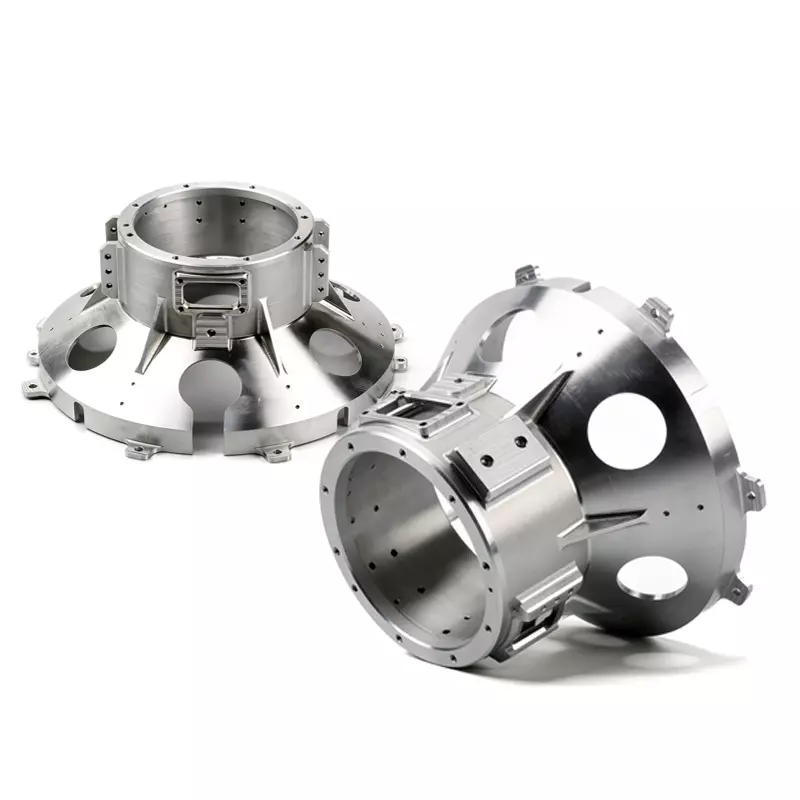

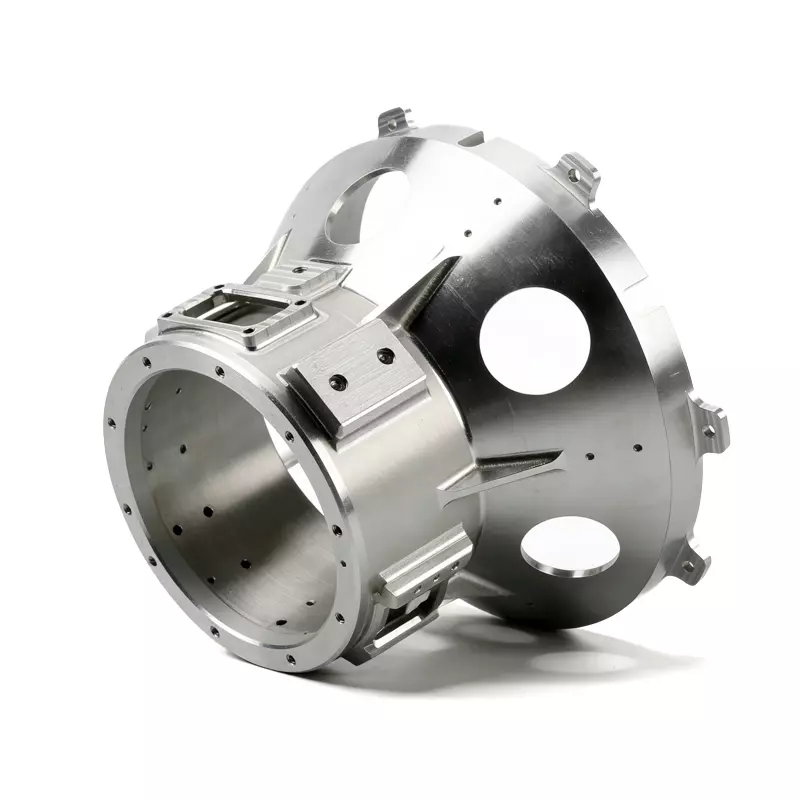

This automotive transmission housing is manufactured by 5‑axis CNC multi‑angle composite machining. The integrated structure combines large‑diameter bottom flange, central cylindrical cavity, reinforcing ribs, window cut‑outs and distributed mounting bosses. Multi‑feature machining is completed in multi‑angle positioning mode, effectively reducing repeated clamping errors and ensuring high positional accuracy for mounting holes, inner bore and mating surfaces for automotive powertrain assembly.
Processing Features & Part Advantages
Processing Features:Large complex monolithic structure, large‑size bottom flange with multiple mounting lugs, central deep cylindrical cavity, reinforcing rib structure, large light‑weight cut‑outs and mixed threaded & through holes. Large‑diameter workpiece requires stable fixture setup. Deep cavity and inner window features require extended cutting tools, strictly controlling chip removal, flatness and hole position tolerance. Part Advantages:High dimensional accuracy of mating surfaces, excellent concentricity of inner bore, consistent hole‑position precision, high structural rigidity, integrated design reduces assembly parts, good heat dissipation performance, stable performance under high‑load automotive working conditions.
| Item | Specification |
|---|---|
| Main Body Material | Aluminum 6061‑T6 (main), support 7075‑T6, Stainless Steel, Brass, Carbon Steel, POM |
| Overall Outer Diameter | 420 mm |
| Overall Height | 220 mm |
| Key Feature | Large bottom flange with mounting lugs, central cylindrical cavity, reinforcing ribs, light‑weight cut‑outs, multiple mounting bosses |
| Tolerance | ±0.015‑0.03 mm |
| Core Process | 5‑Axis CNC Milling, Drilling, Tapping, Deep‑cavity Precision Deburring |
| Surface Finish | Fine machined finish, optional hard anodizing / chemical conversion coating |
| Custom Method | Custom manufactured per customer CAD drawings & automotive specifications |
Beyond 5‑axis CNC machined automotive transmission housing, we support diversified material processing. We are capable of producing auto powertrain housings, chassis structural parts and other complex automotive machined components in 7075‑T6 aluminum, stainless steel, brass, carbon steel and engineering plastic POM. Whether you need transmission casings, motor housings or custom automotive structural components, we can produce strictly according to your drawings and automotive‑industry standards.
We provide one‑stop service covering drawing feasibility evaluation, raw material procurement, multi‑axis CNC precision machining, full‑dimensional inspection and finished‑product packaging. Material test certificates can be provided upon request.
A: Yes, custom manufacturing service is available. Please send your drawing and technical requirements for evaluation and quotation.
A: We support 7075‑T6 aluminum, stainless steel, brass, carbon steel, POM and other materials for custom automotive components.
A: Stable clamping for large‑diameter workpiece, deep‑cavity machining vibration control and high positional tolerance requirements for numerous mounting holes are the main challenges.
A: Yes, we support hard anodizing, conversion coating and other surface treatments to meet automotive industry requirements.
A: Prototype and small‑batch orders are supported. MOQ depends on part complexity, please contact us for detailed offer.
